DELOLUX 820

Properties

PROPERTIES OF DELOLUX 820

DELO's arrayable UV lamps for in-line processes

The DELOLUX 820 lamp system enables fast, even and reliable curing of photoinitiated DELO adhesives. These LED lamps reach full power directly after switched on. They deliver constant process parameters over a lifetime of more than 20,000 hours under typical operating conditions.

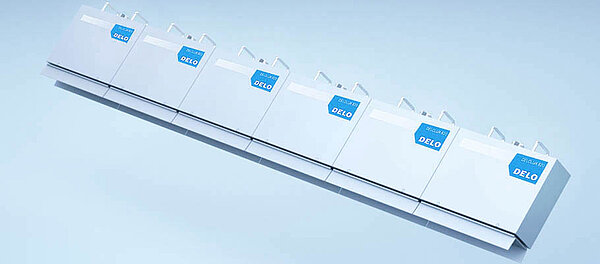

Modular array of 4 or 6 individually controlled lamp heads
Optimized light exit area
Compact design
Liquid cooling with external cooling unit

Unique features

Evenly distributed intensity and homogeneous curing over the entire irradiation line
Stable light power at a constant temperature for maximum process reliability
Easy integration into production systems
Easy-to-exchange lamp head
Maximum output in in-line processes
Use in clean rooms

Brochures of DELOLUX 820

DELOLUX 820

LED area lamp

Technical data

Model	DELOLUX 820 x4	DELOLUX 820 x6
Wavelength	365 nm	365 nm
Head size	848 mm x 82,8 mm x 179 mm	1.267 mm x 82,8 mm x 179 mm
Light exit area	848 x 30 mm	1.250 x 30 mm
Intensitiy typical	≥ 250 mW/cm²	≥ 250 mW/cm²
Cooling mechanism	Liquid cooling with external cooling unit	Liquid cooling with external cooling unit
Control	DELO-UNIPRO, DELO-UNIPRO Light or external PLC	DELO-UNIPRO, DELO-UNIPRO Light or external PLC

Downloads
