DELOLUX pilot A series

Control and power supply for LED area lamps in light curing processes

The DELOLUX pilot A series provides a comprehensive solution for managing and powering up to four lamp heads at once. These control units are designed for seamless integration into PLC-operated process systems, ensuring optimal control over your curing processes.

Area lamps Automation Consistency

DELOLUX pilot A Series

The variants of the DELOLUX pilot A series

Using DELOLUX pilot A series offers several advantages:

  • Cost-effective: Efficient resource use and budget-friendly operation
  • Automation: Manages up to four area lamps simultaneously
  • Versatility: Switch between PLC and manual control
  • Process monitoring: Automatic and real-time status updates
  • Process control: Offers comprehensive control features to dynamically adjust processes as needed
  • User interface: AxT has a 7" touchscreen; Axi a three-digit 7-segment display
  • Space-saving design: The Axi and Axi PROFINET models are compact and lightweight, ideal for space-constrained environments


The right product for your application

The DELOLUX pilot A series control unit is available in three versions. All models are known for their easy-to-use interfaces and management features, and they work seamlessly with the DELOLUX 20 series and DELOLUX 30 series area lamps.

  • DELOLUX pilot AxT: Features a convenient touchscreen interface
  • DELOLUX pilot Axi: An integrated model designed for installation in control cabinets
  • DELOLUX pilot Axi PROFINET: Provides advanced analysis of quality and processes via the PROFINET process network

Find out which product is best suited for which application.

Intuitive

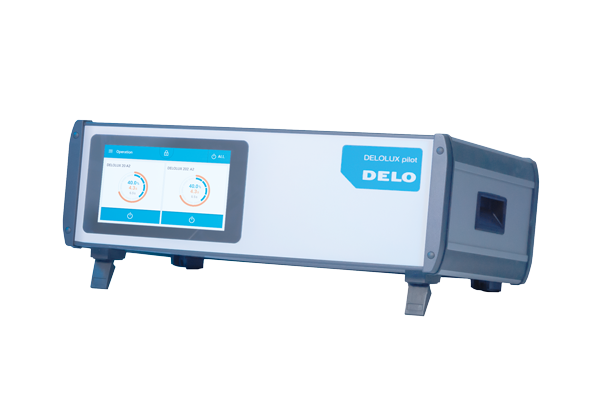

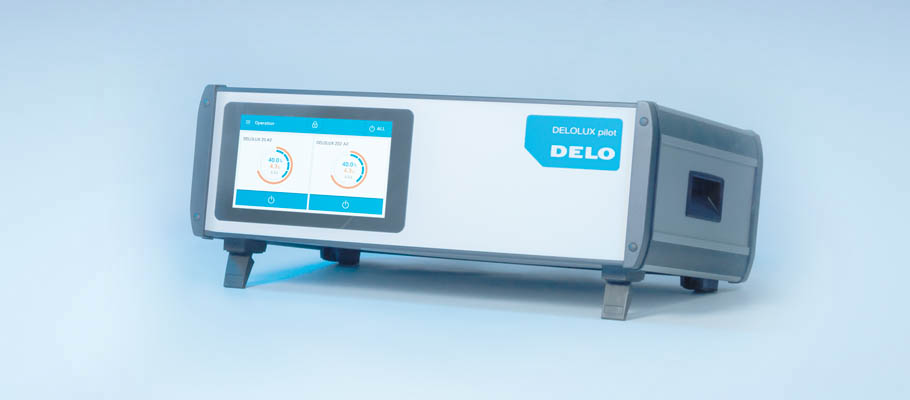

DELOLUX pilot AxT

The DELOLUX pilot AxT focuses on user-friendliness with its touchscreen interface and larger dimensions.

Despite this focus, it can still be operated via PLC systems. In addition, it allows the control of up to four lamp heads.

Automation

DELOLUX pilot Axi / PROFINET

In contrast, the DELOLUX pilot Axi and DELOLUX pilot Axi PROFINET models are designed for space-saving installation in control cabinets of PLC-operated processing systems. They are more compact and lightweight than the DELOLUX pilot AxT. Both models can control up to two lamp heads.

In addition, the PROFINET model provides advanced functions for quality assurance and process data acquisition by transmitting detailed feedback to the central PLC. With its fast response and reaction times, it is an excellent choice for Industry 4.0 applications.

Want to know more about a specific product familiy? Get in touch with us:


Arrange a Consultation

DELOLUX pilot A Series

Gallery

Some impressions related to our DELOLUX pilot A series.

See Gallery

DELO Industrial Adhesives Products Devices DELOLUX pilot A series
DELO Industrial Adhesives Products Devices DELOLUX pilot A series

Curing

DELOLUX pilot A series

Control and power supply for LED area lamps in light curing processes

The DELOLUX pilot A series provides a comprehensive solution for managing and powering up to four lamp heads at once. These control units are designed for seamless integration into PLC-operated process systems, ensuring optimal control over your curing processes.

Area lamps Automation Consistency

DELOLUX pilot A Series

The variants of the DELOLUX pilot A series

Using DELOLUX pilot A series offers several advantages:

  • Cost-effective: Efficient resource use and budget-friendly operation
  • Automation: Manages up to four area lamps simultaneously
  • Versatility: Switch between PLC and manual control
  • Process monitoring: Automatic and real-time status updates
  • Process control: Offers comprehensive control features to dynamically adjust processes as needed
  • User interface: AxT has a 7" touchscreen; Axi a three-digit 7-segment display
  • Space-saving design: The Axi and Axi PROFINET models are compact and lightweight, ideal for space-constrained environments


The right product for your application

The DELOLUX pilot A series control unit is available in three versions. All models are known for their easy-to-use interfaces and management features, and they work seamlessly with the DELOLUX 20 series and DELOLUX 30 series area lamps.

  • DELOLUX pilot AxT: Features a convenient touchscreen interface
  • DELOLUX pilot Axi: An integrated model designed for installation in control cabinets
  • DELOLUX pilot Axi PROFINET: Provides advanced analysis of quality and processes via the PROFINET process network

Find out which product is best suited for which application.

Intuitive

DELOLUX pilot AxT

The DELOLUX pilot AxT focuses on user-friendliness with its touchscreen interface and larger dimensions.

Despite this focus, it can still be operated via PLC systems. In addition, it allows the control of up to four lamp heads.

Automation

DELOLUX pilot Axi / PROFINET

In contrast, the DELOLUX pilot Axi and DELOLUX pilot Axi PROFINET models are designed for space-saving installation in control cabinets of PLC-operated processing systems. They are more compact and lightweight than the DELOLUX pilot AxT. Both models can control up to two lamp heads.

In addition, the PROFINET model provides advanced functions for quality assurance and process data acquisition by transmitting detailed feedback to the central PLC. With its fast response and reaction times, it is an excellent choice for Industry 4.0 applications.

Want to know more about a specific product familiy? Get in touch with us:


Arrange a Consultation

DELOLUX pilot A Series

Gallery

Some impressions related to our DELOLUX pilot A series.

See Gallery

Industrial Production

Automated light curing processes

Control and monitor area lamps

These control units are versatile and suitable for all industries and applications utilizing DELOLUX 20 and DELOLUX 30 lamps for curing. Here are some examples:

  • Tail tacking in HDD production: With its 23 mm light exit area, the DELOLUX 30 is ideal for tail tacking in HDD production. The lamp's peak intensity enables a higher output and reduces production costs.
  • LED packaging: LED packaging allows you to position the lamp head so that the adhesive gets illuminated from above. Higher peak intensity reduces irradiation time, boosting production yield.
  • New process option for mini speakers: UV-curing DELO PHOTOBOND adhesives are used in mini speakers, such as those in smartphones, for bonding applications like attaching the membrane. Proviously, large area lamps were used for curing, but the high intensities of the water-cooled DELOLUX 301 now accelerate this process.
  • Optimized irradiation path for high output in smart card applications
  • High-intensity exposure for board coating

DELOLUX pilot AxT DELOLUX pilot Axi / PROFINET

Technical data

Convenient Industry 4.0-ready
DELOLUX pilot AxT DELOLUX pilot Axi / PROFINET
Description Control unit for DELOLUX 20 / DELOLUX 30 series Switch cabinet version of conrol unit for DELOLUX 20 / DELOLUX 30 series
Automatic temperature compensation max. ± 2 % intensity deviation max. ± 2 % intensity deviation
Dimensions (W × H × D) 440 × 305 × 153 mm A1i / A1i PROFINET: 184 × 305 × 146 mm
A2i / A2i PROFINET: 250 × 305 × 146 mm
User interface 7" touch screen Axi: Two-digit 7-segment display
Power consumption A1T: 515 W
A2T: 825 W
A3T: 1,140 W
A4T: 1,450 W 		A1i/A1i PROFINET: 400 W A2i/A2i PROFINET: 800 W
Power specification 15 % - 100 %
(increment 0.1 %) 		15 % - 100 %
(increment 0.1 %)
Irradiation time 0.1 s to ∞ 0.1 s to ∞
Weight A1T: 5.7 kg
A2T: 7.9 kg
A3T: 10.1 kg
A4T: 12.3 kg 		A1i / A1i PROFINET: 5.0 kg
A2i / A2i PROFINET: 7.3 kg
