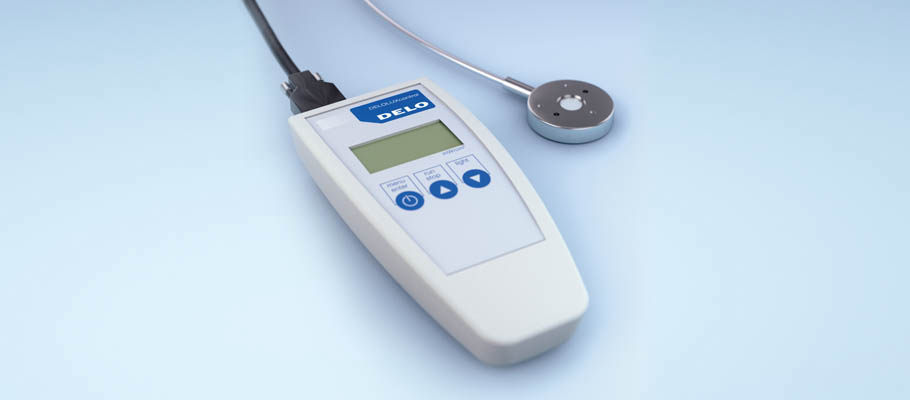

DELOLUXcontrol

Light intensity meter for superior process quality

The DELOLUXcontrol light intensity meter is designed to detect fluctuations in light intensity caused by factors such as contamination, distance changes, or lamp head aging. Recognizing these variations is essential to maintain consistent intensity levels and achieve optimal results in the light curing of adhesives during production processes.

Consistent light intensity Industry 4.0 ready Process control

DELOLUXcontrol

Optimal intensity management across your production line

DELOLUXcontrol offers precise light intensity monitoring, perfectly integrated with the DELOLUX lamp series to ensure flawless adhesive curing. The device is compatible with various sensor heads to accurately measure intensity within the relevant spectral range. Different operating modes allow for flexible measurement adjustments to meet the specific requirements of various applications:

  • CW measurement (Continuous wave): Monitors ongoing light emission
  • Dose measurement: Measures the total light energy over a period
  • Maximum value measurement: Measures the highest intensity level

Using DELOLUXcontrol offers several advantages:

  • Compatibility: Works with all DELO lamp heads
  • Process control: Helps with consistent high product quality over time
  • Easy integration: Connects through USB or RS232 interface
  • Operating modes: Switch modes to meet specific measurement needs
  • Industry 4.0 ready: Supports automated processes via PLC systems
  • Robust performance: Designed to operate within a temperature range of +5 °C to +40 °C
  • Calibration: Maintenance of high process standards



The right product for your application

The DELOLUXcontrol can always be used when it is sensible to monitor the light intensity of DELOLUX lamps in an application.

Precise

DELOLUXcontrol

The DELOLUXcontrol measuring device can be used to detect changes in intensity that may be caused by impurities, changes in distance or aging of the lamp heads.

Regular measurements of the light intensity offer you process reliability when using the DELOLUX lamps.

Automated Monitoring

DELOLUXcontrol RS232

The DELOLUXcontrol can be integrated into a higher-level PLC system using an RS232 interface, facilitating automated process and quality control.

The data collected supports quality assurance and process monitoring, making it perfect for Industry 4.0 applications. Regular calibration of the control unit ensures that high process standards are consistently upheld.

Want to know more about a specific product familiy? Get in touch with us:


Arrange a Consultation

DELOLUXcontrol

Gallery

Some impressions related to our DELOLUXcontrol.

See Gallery

DELO Industrial Adhesives Products Devices DELOLUXcontrol
DELO Industrial Adhesives Products Devices DELOLUXcontrol

Curing

DELOLUXcontrol

Light intensity meter for superior process quality

The DELOLUXcontrol light intensity meter is designed to detect fluctuations in light intensity caused by factors such as contamination, distance changes, or lamp head aging. Recognizing these variations is essential to maintain consistent intensity levels and achieve optimal results in the light curing of adhesives during production processes.

Consistent light intensity Industry 4.0 ready Process control

DELOLUXcontrol

Optimal intensity management across your production line

DELOLUXcontrol offers precise light intensity monitoring, perfectly integrated with the DELOLUX lamp series to ensure flawless adhesive curing. The device is compatible with various sensor heads to accurately measure intensity within the relevant spectral range. Different operating modes allow for flexible measurement adjustments to meet the specific requirements of various applications:

  • CW measurement (Continuous wave): Monitors ongoing light emission
  • Dose measurement: Measures the total light energy over a period
  • Maximum value measurement: Measures the highest intensity level

Using DELOLUXcontrol offers several advantages:

  • Compatibility: Works with all DELO lamp heads
  • Process control: Helps with consistent high product quality over time
  • Easy integration: Connects through USB or RS232 interface
  • Operating modes: Switch modes to meet specific measurement needs
  • Industry 4.0 ready: Supports automated processes via PLC systems
  • Robust performance: Designed to operate within a temperature range of +5 °C to +40 °C
  • Calibration: Maintenance of high process standards



The right product for your application

The DELOLUXcontrol can always be used when it is sensible to monitor the light intensity of DELOLUX lamps in an application.

Precise

DELOLUXcontrol

The DELOLUXcontrol measuring device can be used to detect changes in intensity that may be caused by impurities, changes in distance or aging of the lamp heads.

Regular measurements of the light intensity offer you process reliability when using the DELOLUX lamps.

Automated Monitoring

DELOLUXcontrol RS232

The DELOLUXcontrol can be integrated into a higher-level PLC system using an RS232 interface, facilitating automated process and quality control.

The data collected supports quality assurance and process monitoring, making it perfect for Industry 4.0 applications. Regular calibration of the control unit ensures that high process standards are consistently upheld.

Want to know more about a specific product familiy? Get in touch with us:


Arrange a Consultation

DELOLUXcontrol

Gallery

Some impressions related to our DELOLUXcontrol.

See Gallery

Industrial Production

Light intensity meter for optimal process quality

Measurement of light intensity

DELOLUXcontrol is utilized in a wide range of industries that rely on precise light curing and use DELOLUX lamps. For instance, DELOLUXcontrol can be integrated into the following processes:

  • Smartphone assembly: DELOLUXcontrol provides precise control over the adhesive curing processes essential for attaching components such as displays, camera modules, and sensors.
  • Automotive headlight manufacturing: The system allows for the adjustment of curing parameters to suit different adhesives, thereby aiding in ensuring longevity and performance of automotive headlights.
  • PCB assembly: In the electronics industry, DELOLUXcontrol is essential for attaching LEDs, microprocessors, and other components to circuit boards. It ensures that adhesives cure precisely, securing these components effectively.

DELOLUXcontrol DELOLUXcontrol RS232

Technical data

Uniformity Automation
DELOLUXcontrol DELOLUXcontrol RS232
Dimensions 63 × 31 × 145 mm 63 mm × 30 mm × 113 mm
Operating modes CW measurement
Dose measurement
Maximum value measurement CW 		-
Intensity range 1 mW/cm² to 40 W/cm² 0.0001 – 99 W/cm²
Trigger at 0,0001 W/cm²
Display range [mW/cm²] Automatic measuring range extension mW/cm² > W/cm² > kW/cm² -
Display range [J/cm²] Automatic measuring range extension mJ/cm² > J/cm² > kJ/cm² -
Dose measurement / integral time min. 1 s
max. 99 h, 59 min, 59 s 		-
Operating temperature +5 °C to +40 °C (measuring device) +5 °C to +40 °C
(measuring device)
Power supply 2x mignon AA 1.5 V Current consumption: approx. 10 mA
Interface USB RS232 on 9-pin D-Sub
Weight 161 g 202 g
