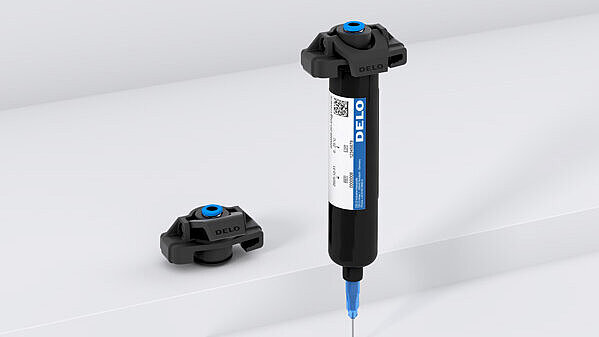

DELO-XPRESS C30

One adapter for all cases

Simplify your production processes with the DELO-XPRESS C30, the universal pneumatic small cartridge adapter. This adapter impresses with its easy handling, compact design and high process reliability. Perfectly suited for 30 cc, 55 cc and 70 cc cartridges from most popular manufacturers.

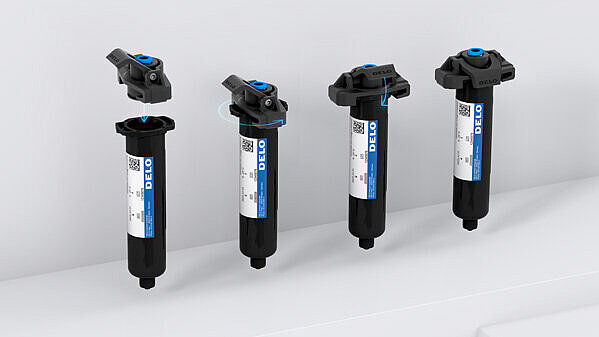

The DELO-XPRESS C30 is the ideal solution for production processes that rely on flexibility and reliability. As an adhesive system supplier, DELO developed this adapter to bridge the gap between larger dispensing equipment and popular small cartridges, including the specially developed DELO small cartridge. The small cartridges’ higher tolerances can be compensated for thanks to the adapter’s innovative sealing mechanism. This virtually eliminates compressed air leaks.

Thanks to its low weight of just ~ 22 grams and handy dimensions of 54 mm × 28 mm × 27 mm, the adapter not only saves space, but is also easy to install and use. The use of fiberglass ensures robustness and durability at a maximum operating pressure of 7 bar.

Most important features

Simple handling
Compact design
Prevents leaks
Compensates for large cartridge tolerances

Areas of use and fields of application

Suitable for all applications in which small cartridges are used:

Direct dispensing
Pressure/time dispensing
Jetting
Volumetric dispensing

Brochures of DELO-XPRESS C30

Brochure DELO-XPRESS C30

Small Cartrigde Adapter

THE FOLLOWING PRODUCTS COULD BE INTERESTING

Adhesives

LED lamps

Dispensing valves and systems

Excellent bonding results – Thanks to DELO's state-of-the-art adhesives

For more than 50 years, DELO has been convincing customers with its adhesion solutions: Whenever reliable, durable and fast-curing bonds are necessary, DELO glues report for duty!

The application fields and possibilities of use are highly diverse and the industries range from microelectronics, electronics, RFID, automotive and photovoltaics to mechanical engineering. If you are looking for a bonding solution for your components, then ask for details of our products, and benefit from expert advice on adhesives. From cyanoacrylate and epoxy resin adhesives to silicones, DELO is guaranteed to have the right adhesive for you.

LED curing lamps for quick adhesive curing processes

Speed is often the focus when it comes to using adhesives. UV curing lamps enable fast curing and are therefore often indispensable in the production process.

UV LED lamps offer technical properties that deliver significant advantages for adhesive curing:

Light intensity adjustable to a constant high level
Useful life can exceed 20,000 hours (“on” time = lifetime)
Low operating costs through low current consumption and low costs for maintenance and spare parts
No warm-up time and therefore ready for operation immediately
Reproducible curing properties on the entire irradiated area
Very low heat development at the component
Compact design

DELO dispensing equipment for precise adhesive dispensing

Adhesive, application and desired degree of automation – these factors are decisive for the selection of suitable dispensing equipment, such as dispensing guns, valves and pressure tanks.

DELO’s adhesive dispensing equipment is precisely adapted to its high-tech adhesives and enables optimum production processes. You benefit from cost-effective adhesive processing that can be integrated into the process flexibly. Jet systems, in particular, must operate precisely and fast, and must be compact. Precision is necessary for the accurate and reproducible application of tiny adhesive quantities; speed enables fast processes, while a compact design allows integration into any production system.

Do you need assistance with your application?

Our experts will be pleased to offer advice and assistance.

+1 978 254 5275

Do you have questions about a specific application? If so, please use our project form.
The more detailed the description, the faster you will receive your optimum product sample.

QUICK REQUEST

Project inquiry

	DELO-XPRESS C30
Dimensions	54 mm × 28 mm × 27 mm
Weight	~ 22 g
Max. operating pressure	7 bar
Material	Glass fiber reinforced PP and PA6
Compatibility	30 cc, 55 cc and 70 cc cartridges
