Semicon adhesive propels autonomous driving forward

DELO has developed a flexible electronics adhesive that permanently seals sensor housings airtight and thus reliably protects components such as image sensors. DELO DUALBOND BS3770 meets the stringent requirements of the semiconductor and automotive industries and helps drive innovation in autonomous driving.

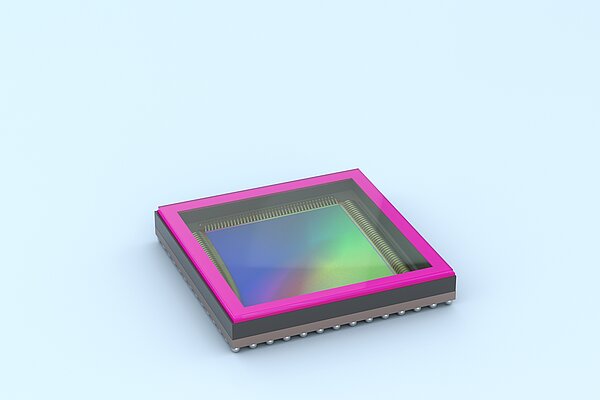

The autonomous driving trend requires high safety standards. Therefore, reliable components such as image sensors are installed in LiDAR and RADAR systems. Sensor housings on PCBs must be hermetically sealed throughout their entire service life in order to maintain their function permanently without interruption. However, existing solutions for hermetically sealing the housing and filter glass are reaching their limits due to these stricter requirements, failing to withstand the tests of the automotive industry, according to standard AEC-Q100.

With DELO DUALBOND BS3770, DELO has a special electronics adhesive in its portfolio that semiconductor manufacturers use to meet the demanding reliability and qualification tests of automotive suppliers.

Unlike other adhesives available on the market, the DELO adhesive is a flexible product with a Young's modulus of less than 5 MPa at room temperature. Due to its flexible properties starting from a temperature as low as approximately -50 °C, the adhesive can compensate for pressure changes that occur, such as those caused by temperature changes, humidity differences, or heat input in the reflow process during production. As a result, defects such as pop-ups or delamination do not occur, and the sensor is permanently protected.

DELO DUALBOND BS3770 can be precisely applied by needle dispensing while maintaining narrow and high bondlines. Curing takes place in two consecutive steps using UV light and heat. After dispensing, the adhesive is fixed in a few seconds by means of classic light fixation. Alternatively, it can be transferred to the B-stage, which is particularly relevant for bonding filter glasses with blackprint. At this stage, it achieves an initial adhesion comparable to tape. Afterwards, the second component can be joined. Thanks to the adhesive’s initial adhesion, the component is directly fixed so that it can be entirely processed further. Final curing takes place in a convection oven at +150 °C within 40 minutes.

In addition to image sensors for LiDAR and RADAR applications, DELO DUALBOND BS3770 is also used in driver monitoring and for 5G applications.

Do you already have a specific application, or would you like to learn more about DELO DUALBOND? Our project consulting will help you. In addition, you will find helpful tips and information from our adhesives experts in various TECH TALKS.
