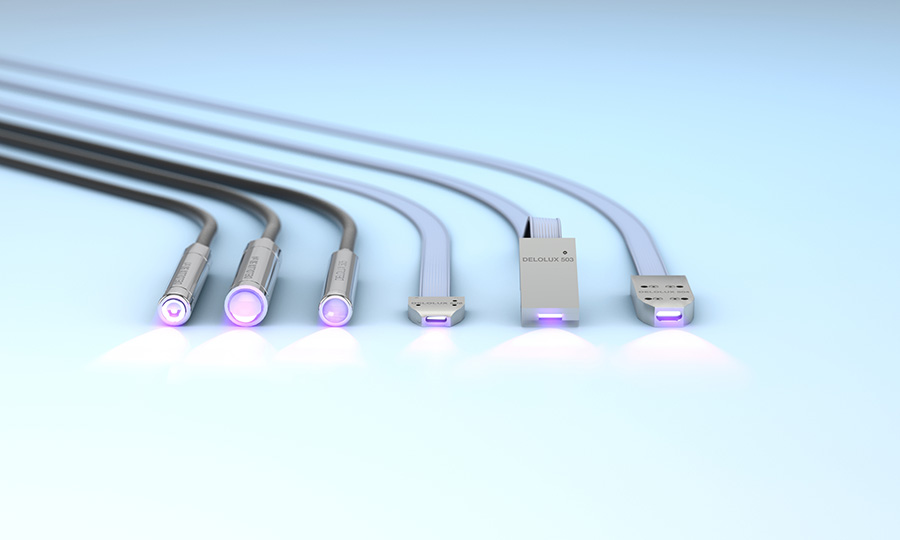

DELOLUX 50 | 502 | 503 | 504 | 505

UV curing lamp DELOLUX 50 – for curing tiniest adhesive dots on the spot

DELOLUX 50 UV curing lamp is an excellent option for quick and precise curing of adhesives. With intensities of up to 18,000 mW/cm², this UV spotlight can realize exposure times of under a second. Furthermore, this UV spot lamp isn't just space-efficient but especially reliable: Consistent light intensity ensures process security, when working with DELOLUX 50 UV curing lamp.

Benefits at a glance:

The right LED head for every application
More than 20,000 h lifetime can be achieved
Independent irradiation of multiple bonding areas
Easy integration into production systems thanks to the small dimensions of the LED heads
Perfectly suitable LED heads available for a variety of applications
UV curing lamp with more than 20,000 active hours
Option to independently illuminate several bonding areas
Easy integration into a production system due to very small LED heads

Brochures of DELOLUX 50 | 502 | 503 | 504 | 505

LED spot lamps: DELOLUX 50 series

Technical data DELOLUX 50

THE FOLLOWING PRODUCTS COULD BE INTERESTING

Adhesives

LED lamps

Dispensing valves and systems

Excellent bonding results – Thanks to DELO's state-of-the-art adhesives

For more than 50 years, DELO has been convincing customers with its adhesion solutions: Whenever reliable, durable and fast-curing bonds are necessary, DELO glues report for duty!

The application fields and possibilities of use are highly diverse and the industries range from microelectronics, electronics, RFID, automotive and photovoltaics to mechanical engineering. If you are looking for a bonding solution for your components, then ask for details of our products, and benefit from expert advice on adhesives. From cyanoacrylate and epoxy resin adhesives to silicones, DELO is guaranteed to have the right adhesive for you.

LED curing lamps for quick adhesive curing processes

Speed is often the focus when it comes to using adhesives. UV curing lamps enable fast curing and are therefore often indispensable in the production process.

UV LED lamps offer technical properties that deliver significant advantages for adhesive curing:

Light intensity adjustable to a constant high level
Useful life can exceed 20,000 hours (“on” time = lifetime)
Low operating costs through low current consumption and low costs for maintenance and spare parts
No warm-up time and therefore ready for operation immediately
Reproducible curing properties on the entire irradiated area
Very low heat development at the component
Compact design

DELO dispensing equipment for precise adhesive dispensing

Adhesive, application and desired degree of automation – these factors are decisive for the selection of suitable dispensing equipment, such as dispensing guns, valves and pressure tanks.

DELO’s adhesive dispensing equipment is precisely adapted to its high-tech adhesives and enables optimum production processes. You benefit from cost-effective adhesive processing that can be integrated into the process flexibly. Jet systems, in particular, must operate precisely and fast, and must be compact. Precision is necessary for the accurate and reproducible application of tiny adhesive quantities; speed enables fast processes, while a compact design allows integration into any production system.

Do you need assistance with your application?

Our experts will be pleased to offer advice and assistance.

Quotations, ordering	Technical consulting, sample and data sheet inquiries
+49 8193 9900 - 9610	+49 8193 9900 - 9611

Do you have questions about a specific application? If so, please use our project form.
The more detailed the description, the faster you will receive your optimum product sample.

QUICK REQUEST

Project inquiry

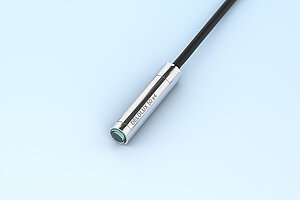

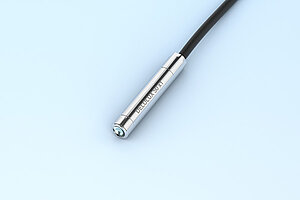

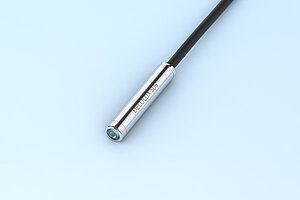

	DELOLUX 50 x1	DELOLUX 50 x4	DELOLUX 505
Dimensions of lamp head	12 mm dia. x 71 mm	15 mm dia. x 76 mm	12 mm dia. x 64 mm
Light exit area	8.6 mm dia.	11.5 mm dia.	10 mm dia.
Light intensity	365 nm ≥ 18.000 mW / cm² @ 2 mm 400 nm ≥ 15.000 mW / cm² @ 2 mm 460 nm ≥ 14.000 mW / cm² @ 2 mm	365 nm ≥ 18.000 mW / cm² @ 2 mm 400 nm ≥ 15.000 mW / cm² @ 2 mm 460 nm ≥ 14.000 mW / cm² @ 2 mm	365 nm ≥ 7.950 mW / cm² @ 10 mm 400 nm ≥ 10.500 mW / cm² @ 10 mm
Wavelengths	365 nm, 400 nm, 460 nm	365 nm, 400 nm, 460 nm	365 nm, 400 nm
Cooling mechanism	Passively cooled, heat sink in lamp head	Passively cooled, heat sink in lamp head	Passively cooled, heat sink in lamp head
Control	DELOLUX pilot S series and optionally downstream PLC	DELOLUX pilot S series and optionally downstream PLC	DELOLUX pilot S series and optionally downstream PLC
Product compatibility	Lenses:* L1, L2, L3, L6 *Special lenses on request	Lenses:* L5, L10 *Special lenses on request	Lenses:* S3, S4, S6, S8, S10 *Special lenses on request

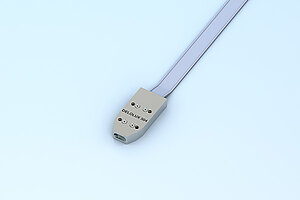

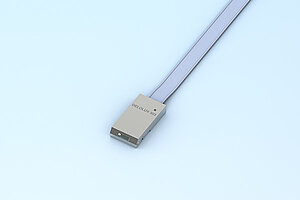

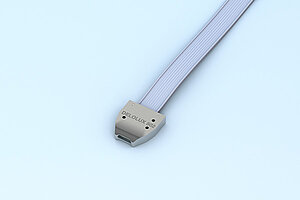

	DELOLUX 502	DELOLUX 503	DELOLUX 504
Dimensions of lamp head	20 × 4.9 × 21.3 mm	20 × 7 × 37 mm	20 x 7.3 x 42 mm
Light exit area	7 × 2 mm	10 × 3 mm	7 x 2 mm
Wavelengths / Intensities (typical)	365 nm: ≥ 1,350 mW/cm² @ 6 mm	365 nm: ≥ 1,000 mW/cm² @ 15 mm 400 nm: ≥ 1,600 mW/cm² @ 15 mm 460 nm: ≥ 1,300 mW/cm² @ 15 mm 460 nm LP: ≥ 500 mW/cm² @ 15 mm	365 nm: ≥ 5,200 mW/cm² @ 6 mm 400 nm: ≥ 7,500 mW/cm² @ 6 mm
Cooling Mechanism	Passively cooled via heat sink in lamp head	Passively cooled via heat sink in lamp head	Passively cooled via heat sink in lamp head
Control	DELOLUX pilot S series and optionally downstream PLC	DELOLUX pilot S series and optionally downstream PLC	DELOLUX pilot S series and optionally downstream PLC
